1. Basic parameters and specifications

Rated load range
European Type Bow shackle adopts standardized heavy-duty design, with a tonnage range of 0.5 tons to 150 tons, covering conventional and medium‑large tonnage hoisting demands.

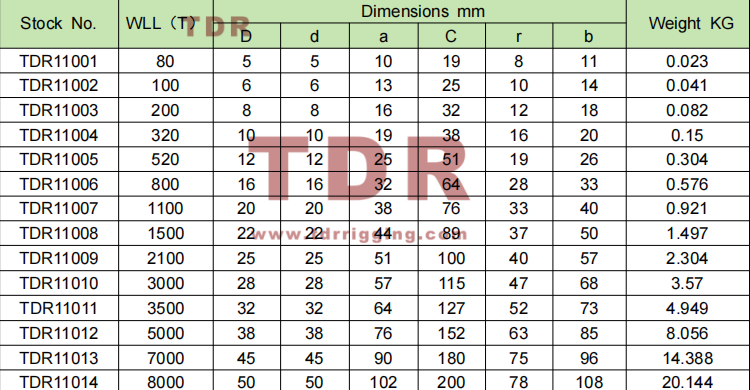

Dimensions
• Cross pin diameter: 10–100 mm (specific values differ slightly with different manufacturers and tonnage specifications).
• Shackle body diameter: 10–95 mm, detailed dimensions are matched with the rated load to ensure structural stability and compliance with European standards.

2. Materials and Processes

Material
• Mainstream materials: high-strength alloy steel (such as 42CrMo, 40CrNiMo), high-grade quenched and tempered steel, with excellent tensile strength, fatigue resistance and toughness.
• Surface treatment: hot-dip galvanizing (mainstream), electro-galvanizing, Dacromet coating, powder spraying to adapt to long-term use in corrosive environments such as marine and outdoor.

Manufacturing process
• Forging process: all adopt integral die forging combined with precision heat treatment, optimizing internal structure and improving overall mechanical properties.
• Special process: high-standard quenching and tempering treatment is adopted, which meets the impact resistance requirements of low-temperature environments (-40℃ to -50℃), and is suitable for extreme operating conditions.

3. Safety performance and standard

Safety factor
• The standard safety factor is 6 times, and customized high-strength models can reach 8–10 times, with higher safety margin.
• Test load: generally 2 times the rated load, and large‑tonnage models are 1.5–2 times the rated load, passing 100% factory load test.

Certification and Standards
• Comply with European standard EN13889, DIN standards, and most products have obtained DNV, LR, BV, ABS and other international authoritative certifications.

4. Application Areas
• Industry coverage: marine engineering, port hoisting, large-scale construction, petrochemical, mining, electric power construction, machinery transportation and other fields.
• Typical application scenarios: heavy-duty hoisting connection, offshore platform fixing, ship mooring, large equipment transportation, emergency rescue and other high-load working conditions.

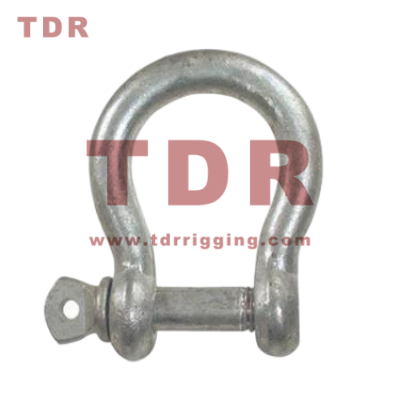

Our European Type Bow shackle is a heavy-duty lifting rigging accessory with high strength and long-term reliability. Forged from high-performance alloy steel, the European Type Bow shackle has outstanding tensile strength, low-temperature toughness and anti-fatigue performance, which is specially designed for heavy-load and harsh environment operations.

Our European Type Bow shackles are treated with professional hot-dip galvanizing or customized anti-corrosion technology, which has excellent corrosion resistance and can operate stably for a long time in marine, high-humidity and high-salt environments. Each product undergoes strict non-destructive testing and load testing to fully meet European and international standard requirements, ensuring safe and stable operation under heavy loads.

As a professional European Type Bow shackle manufacturer in China, we provide competitive wholesale prices, stable and efficient delivery capacity, and strict quality control system. We can provide standard size products and support customized processing of non-standard specifications. Our European Type Bow shackles are the preferred reliable choice for heavy-duty hoisting and rigging projects.
