1. Basic Parameters and Specifications

Rated Load Range

TG209 Shackle Cover General Specifications, Tonnage 0.33 tons to 150 tons

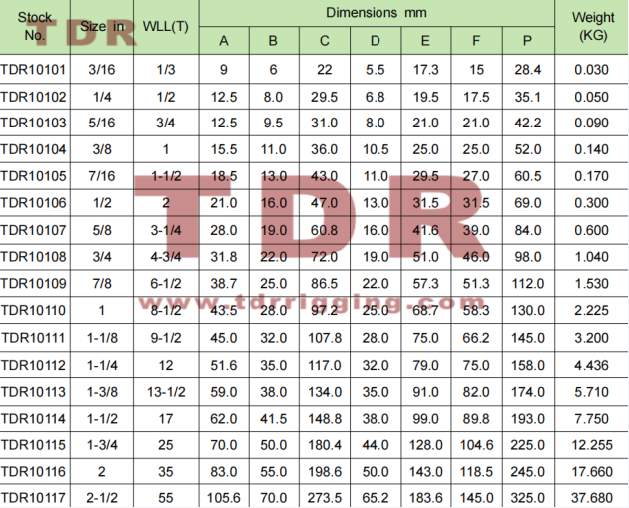

Dimensional Parameters

– Cross Pin Diameter: 6-108 mm (slightly different by brand).

– Shackle Body Diameter: 6-104 mm, specific dimensions vary depending on the load.

2. Materials and Processes

Materials

– Mainstream Materials: Alloy steel (such as 40Cr, 45# steel), some brands use high-strength steel or carbon steel.

– Surface Treatment: Electro-galvanizing, hot-dip galvanizing, spraying, or Dacromet coating to enhance corrosion resistance.

Manufacturing Process

– Forging Process: Most use forging combined with heat treatment to improve impact resistance and elongation.

– Special Process: Crosby shackles undergo quenching and tempering to meet impact resistance requirements in low-temperature environments (-20℃ to -40℃).

3. Safety Performance and Standards
Safety Factor

– Generally 4 times, some high-end products can reach 6-8 times.

– Test load is typically 2 times the rated load (1.33-1.5 times for some large tonnage models).

Certifications and Standards

– Complies with US standards (ASME B30.26) and European standards (EN13889:2003), some products have obtained certifications from classification societies such as ABS, DNV, and Lloyds**.

4. Application Areas

– Industry coverage: Power, metallurgy, petroleum, machinery, ports, mining, construction, aerospace, etc.

– Typical application scenarios: Lifting equipment connection, rescue operations, ship anchoring, large-scale transportation, etc.

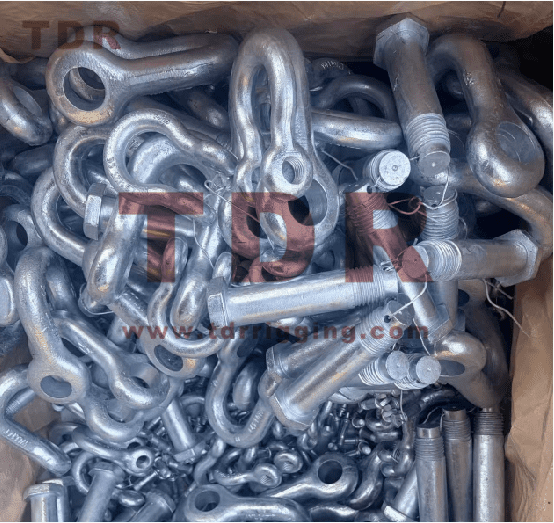

Our G209 shackle is a heavy-duty lifting rigging accessory designed for high strength and reliability. This G209 shackle is forged from high-quality carbon steel, offering excellent durability and abrasion resistance, making it ideal for construction, mining, marine, and general industrial applications.

Our G209 shackles undergo a hot-dip galvanizing process, providing superior corrosion protection even in harsh outdoor environments. Each shackle undergoes rigorous testing to meet international standards, ensuring stable and reliable performance under heavy loads.

As a leading G209 shackle manufacturer in China, we offer wholesale services with highly competitive prices, stable delivery times, and consistent quality. Whether you need standard sizes or custom solutions, our G209 shackles are a reliable choice for all your lifting and rigging needs.
