1. Product Overview

Malleable iron (Lin Feng type / Qindao style) turnbuckle, commonly known as Malleable iron turnbuckles (mǎgāng huālán), is a cost-effective cast turnbuckle widely manufactured and applied in the global rigging hardware industry. It adopts malleable cast iron (malleable steel) integral casting forming process, with hot-dip galvanized or electro-galvanized surface for excellent rust and corrosion resistance.
This type of open body turnbuckle is mainly used for adjusting and tightening the tension of wire ropes, cables, pull rods and stay lines. It is ideal for general static load tension scenarios, and widely used in fence engineering, greenhouse construction, awning installation, guardrail fixing, landscape engineering, home and factory daily fastening scenarios.

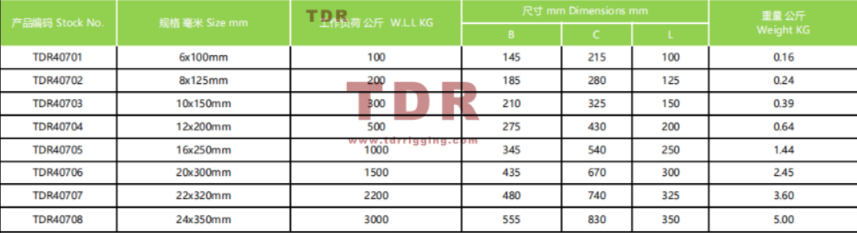

2. Specifications and Parameters

• Size range & types

◦ Standard thread specifications: M4-M30 (the most mainstream market sizes are M6 / M8 / M10 / M12 / M16 / M20)

◦ Common end configurations:

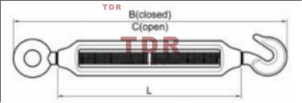

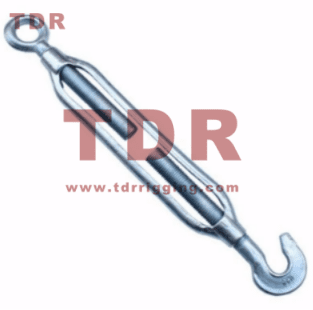

◦ OC type (one ring + one hook)

◦ OO type (double ring / eye-eye)

◦ CC type (double hook / hook-hook)

◦ Full open body design, large adjustable stroke for easy length fine-tuning

• Load & performance

◦ Rated working load limit (WLL): 0.1T – 5T (matched to different thread specifications)

◦ Breaking load: 3-4 times of rated working tension

◦ Surface treatment: standard electro-galvanized (zinc plated), optional hot-dip galvanized for outdoor long-term anti-rust

◦ Feature: low cost, good toughness, easy installation and high cost performance
3. Application Areas

• Civil & building installation: fence tensioning, sunshade awning, banner billboard fixing, balcony and stair guardrail stay cable tightening

• Agricultural & facility engineering: greenhouse and farm shed frame reinforcement, plant climbing net tightening

• Daily rigging & fixing: wire rope tightening, goods binding, door and window tension adjustment, temporary structure stay reinforcement

• General hardware matching: supporting use with wire rope clips, thimbles, common shackles and chains for non-lifting static tension work
⚠️ Important Reminder
Malteable iron turnbuckles are only suitable for static tension and fixing. NOT FOR overhead lifting, dynamic load or heavy hoisting work. For professional lifting and heavy load scenarios, please choose professional drop forged turnbuckles that comply with DIN1480 standard.
