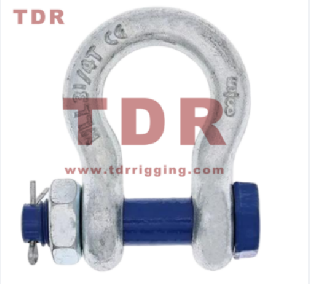

G2130 Shackle Product Introduction

1. Basic parameters and specifications

Rated load range

TG2130 shackle adopts standardized heavy-duty design, with a tonnage range of 0.5 tons to 200 tons, covering conventional and large-tonnage hoisting demands.

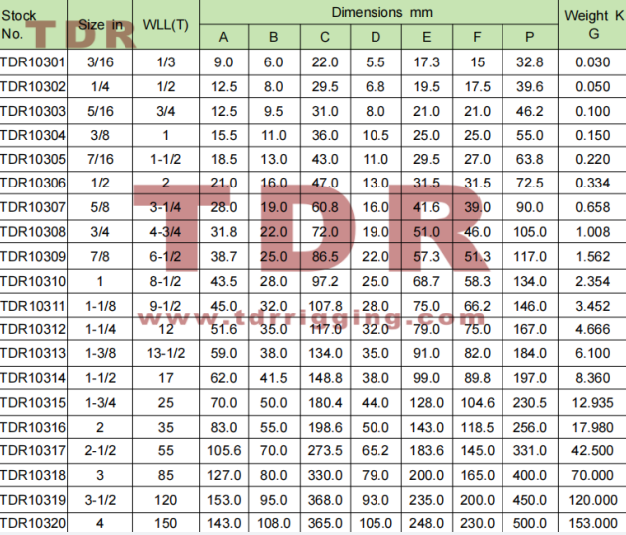

Dimensions

• Cross pin diameter: 8-120 mm (specific values differ slightly with different manufacturers and tonnage specifications).

• Shackle body diameter: 8-112 mm, detailed dimensions are matched with the rated load to ensure structural stability.

2. Materials and Processes

Material

• Mainstream materials: high-strength alloy steel (such as 40CrNiMo, 42CrMo), high-grade carbon structural steel, with excellent tensile and fatigue resistance.

• Surface treatment: hot-dip galvanizing (mainstream), electro-galvanizing, Dacromet coating, powder spraying to adapt to long-term use in corrosive environments such as marine and outdoor.

Manufacturing process

• Forging process: all adopt integral die forging combined with precision heat treatment, optimizing internal structure and improving overall mechanical properties.

• Special process: high-standard quenching and tempering treatment is adopted, which meets the impact resistance requirements of low-temperature environments (-40℃ to -60℃), and is suitable for extreme operating conditions.

3. Safety performance and standard

Safety factor

• The standard safety factor is 6 times, and the customized high-strength model can reach 8-10 times, with higher safety margin.

• Test load: generally 2 times the rated load, and the large-tonnage model is 1.5-2 times the rated load, passing 100% factory load test.

Certification and Standards

• Comply with American standard ASME B30.26, European standard EN13889:2003, and most products have obtained ABS (American Bureau of Shipping), DNV (Det Norske Veritas), LR (Lloyd’s Register) and other international authoritative certifications.

4. Application Areas

• Industry coverage: marine engineering, port hoisting, large-scale construction, petrochemical, mining, electric power construction, aerospace, heavy machinery transportation and other fields.

• Typical application scenarios: heavy-duty hoisting connection, offshore platform fixing, ship mooring, large equipment transportation, emergency rescue and other high-load working conditions.

Our G2130 shackle is a super heavy-duty lifting rigging accessory with ultra-high strength and long-term reliability. Forged from high-performance alloy steel, the G2130 shackle has outstanding tensile strength, low-temperature toughness and anti-fatigue performance, which is specially designed for extreme heavy-load and harsh environment operations.

Our G2130 shackles are treated with professional hot-dip galvanizing or customized anti-corrosion technology, which has excellent corrosion resistance and can operate stably for a long time in marine, high-humidity and high-salt environments. Each product undergoes strict non-destructive testing and load testing to fully meet international standard requirements, ensuring safe and stable operation under ultra-heavy loads.

As a professional G2130 shackle manufacturer in China, we provide competitive wholesale prices, stable and efficient delivery capacity, and strict quality control system. We can provide standard size products and support customized processing of non-standard specifications. Our G2130 shackles are the preferred reliable choice for heavy-duty hoisting and rigging projects.
